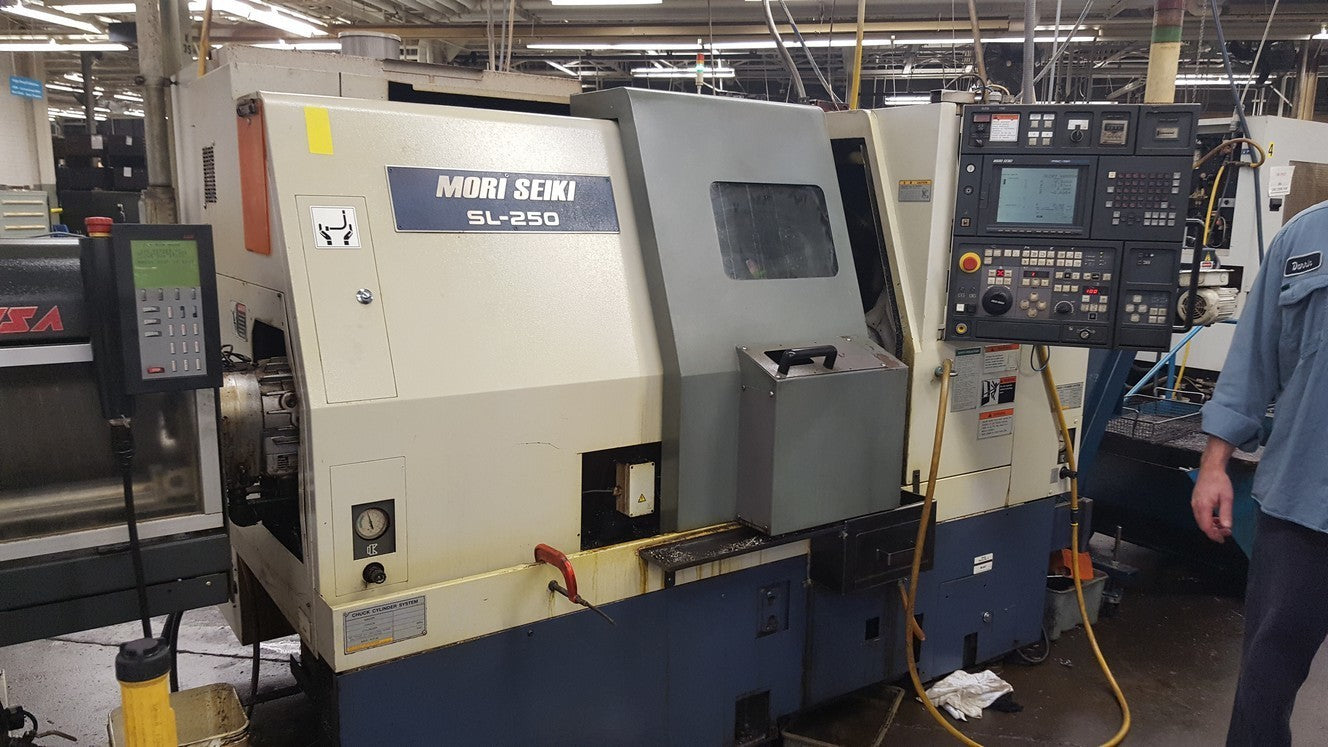

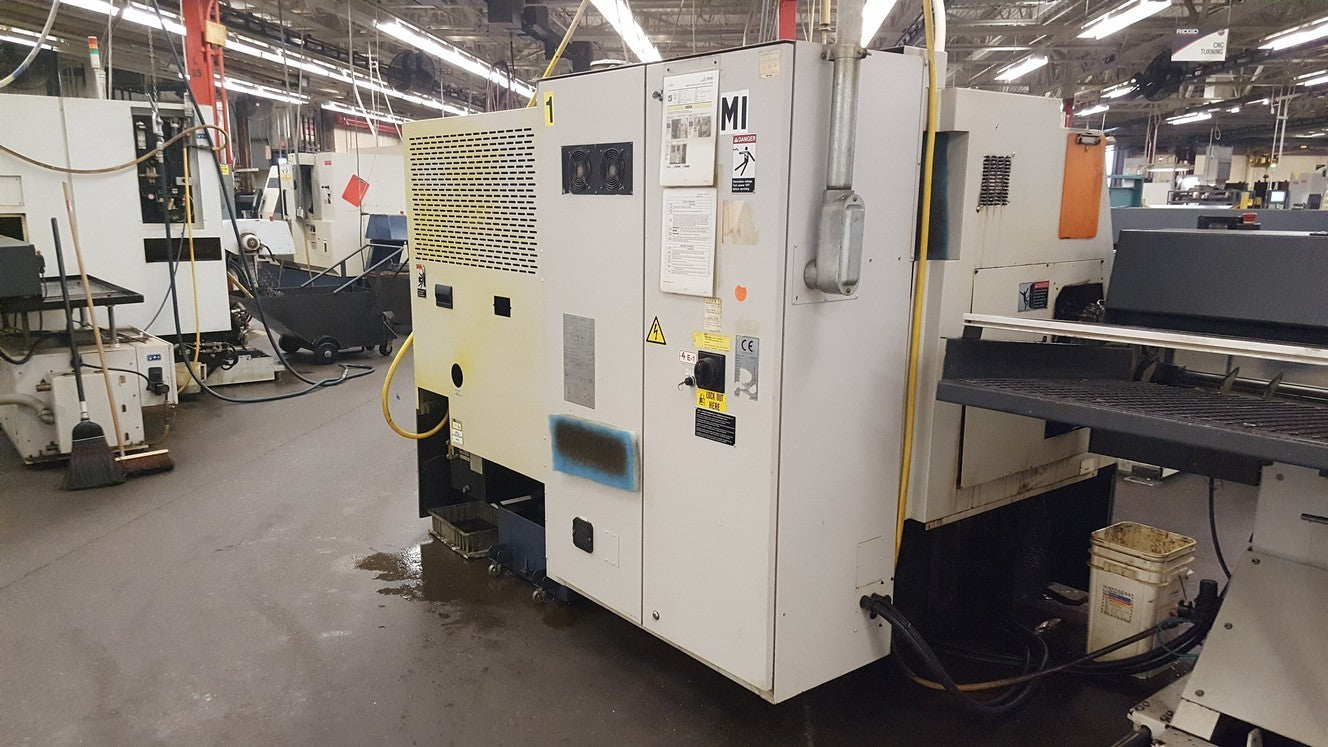

Mori Seiki SL-250 CNC Lathe Turning Center For Sale Used
Year: 1999

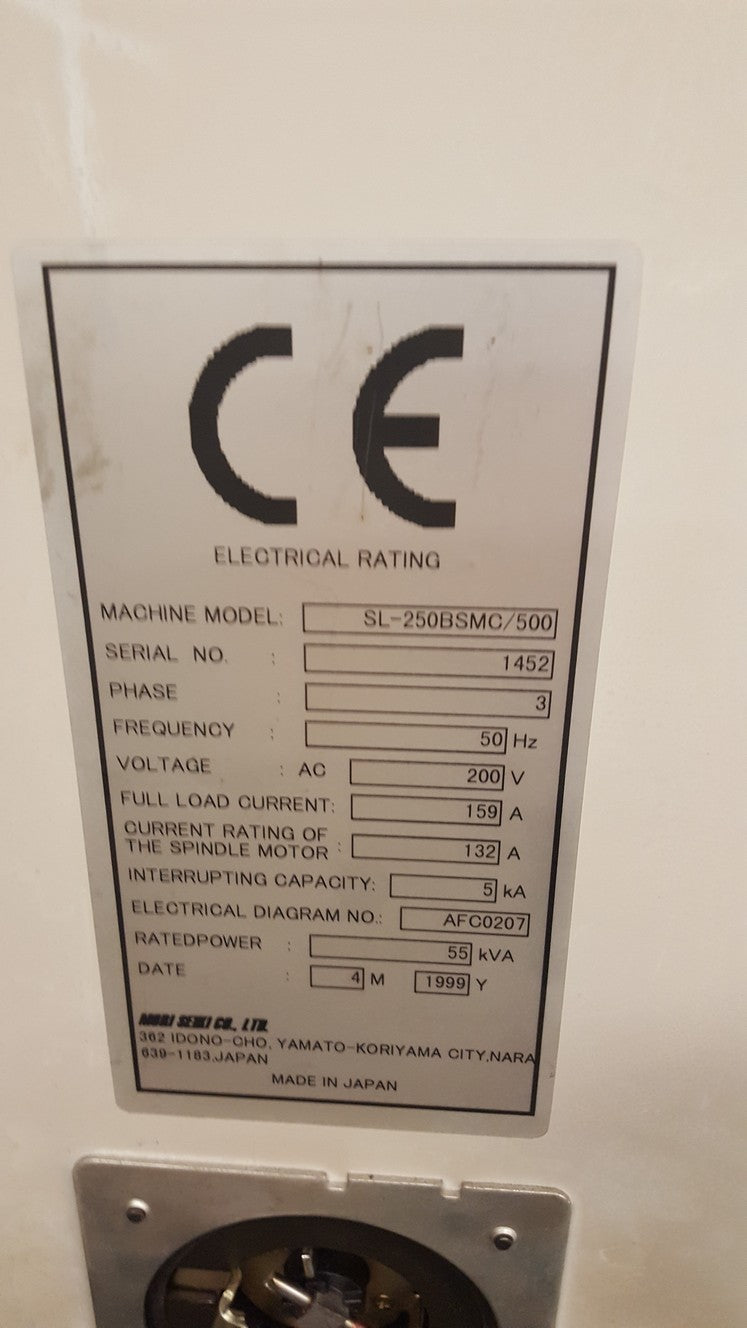

Model: SL-250BSMC/500

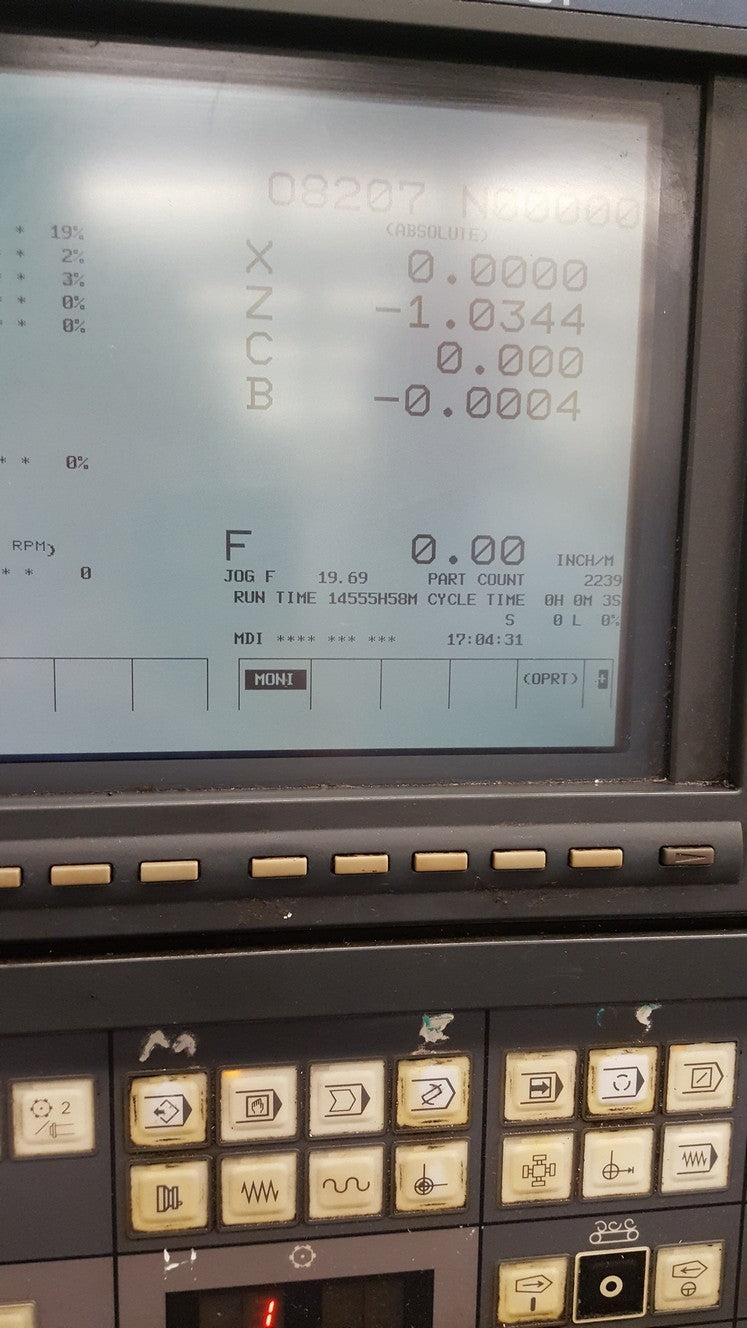

Run Time: 14,550 hours
Swing Over Bed / Cross Slide: 26.8″/ 22.6″
Maximum Turning Diameter: 15.3″
Standard Turning Diameter: 8.27”
Distance Between Centers: 22.6″
Max Turning Length: 19.10″
Spindle Speeds: 35-3500
Spindle Motor: 20/15
Spindle Nose: A2-8
Min. Spindle Index Angle: .001”
Spindle Bore: 3.3″
Max Bar Size: 2.9″

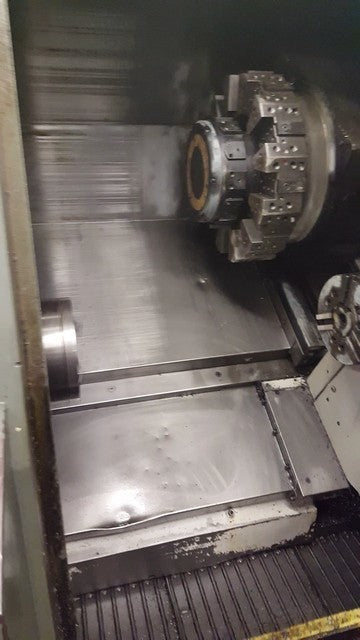

Turret Stations: 10
Turret Index Time: 0.2 Sec
Square Tool Capacity: 1″
Boring Bar Capacity: 2.0″
Axis Travel:
Z- Axis: 19.5″
X- Axis: 6.3″
Live Milling: 10 Positions
Live Milling RPM: 3,000RPM
Live Milling HP: 8/5.8 HP
Rapid Travels: X and Z : 708/944.9 IPM
Tail Stock Taper: MT # 5
Tail Stock Travel: 4.7”
Machine Dimensions: 93.7″ x 69.3″ x 74.2″ high
Power: 220v/3ph
Equipped With:

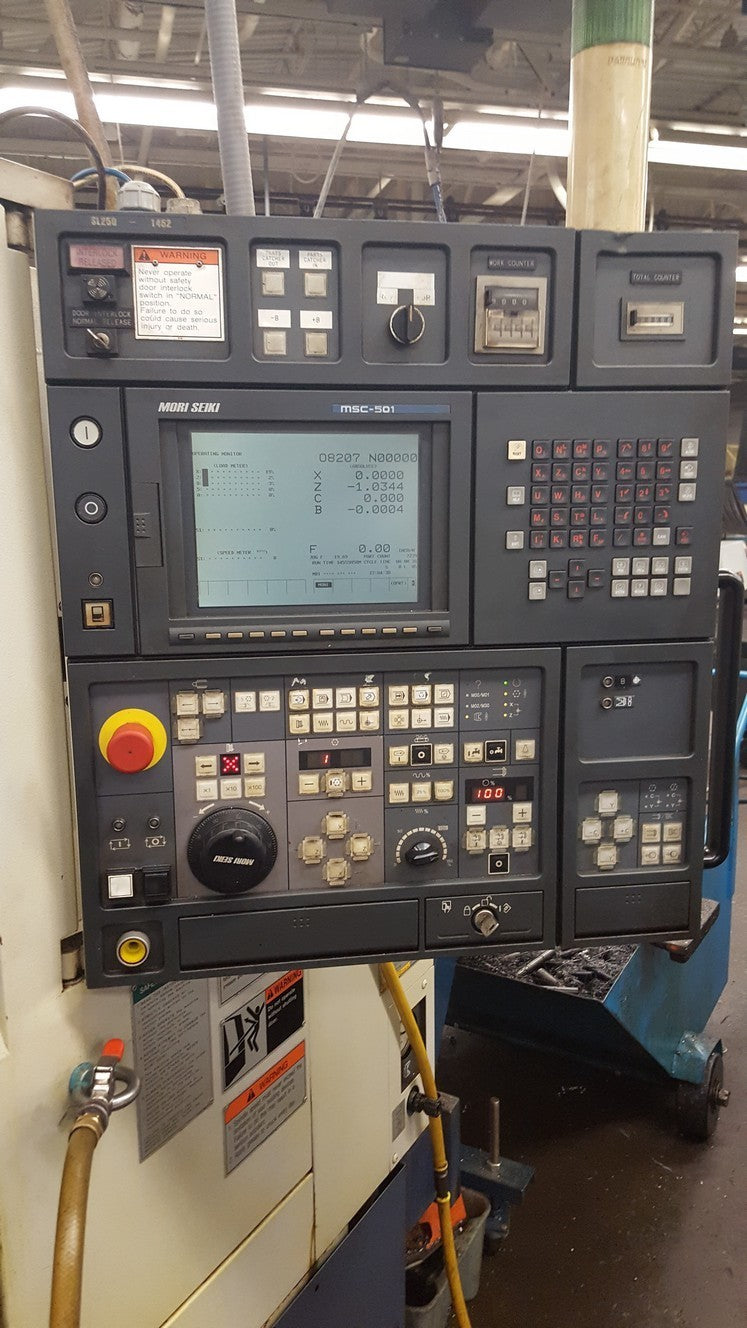

MORI SEIKI-Fanuc MSC-501 (Fanuc 18i) CNC CONTROL
RS-232C PORT INTERFACE FOR DNC OPERATION
IN-MACHINE TOOL PRE-SETTER
TAILSTOCK
20 HP SPINDLE
STANDARD COOLANT SYSTEM WITH TANK & PUMP

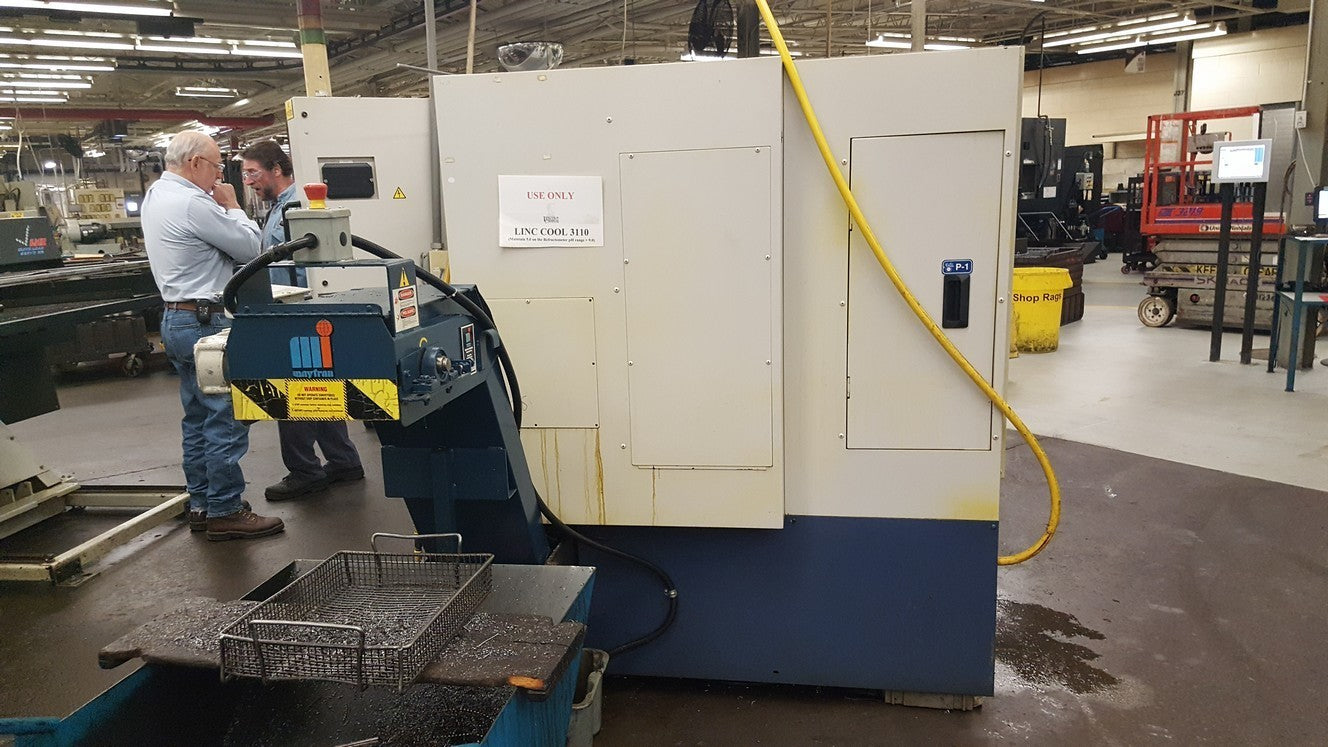

MAYFRAN CHIP CONVEYOR

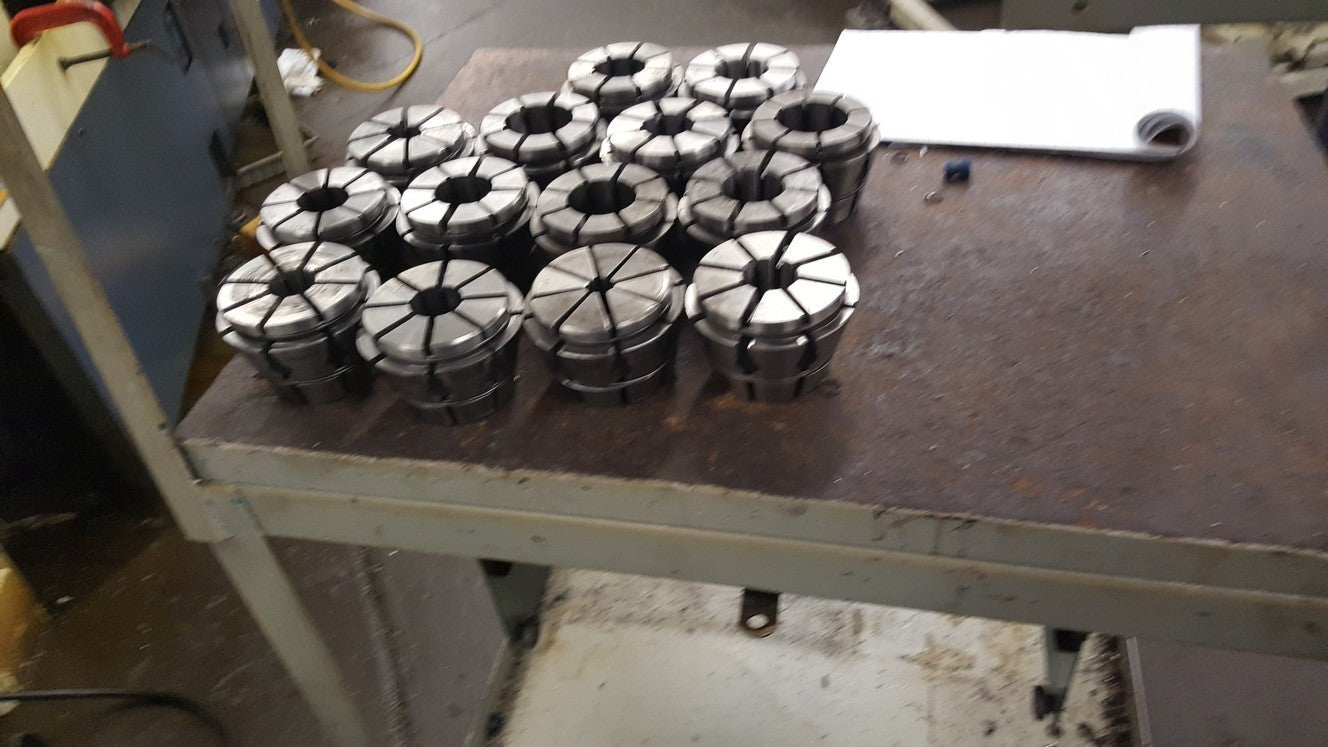

INCLUDES COLLET CHUCK AND SOME COLLETS
Note:
Does Not Include Bar Feeder
Machine was recently removed from service on 2.10.17 and runs good
This machine is used and is being sold as is with no warranty. Some machines may qualify for a 3rd party warranty, please ask. As this is a used machine, we do not offer any refunds or returns.
Please call or email us for more information.
Phone: 616-200-4308 or Email: affordablemachinery@gmail.com
PLEASE NOTE: The shipping & loading cost is at the buyer’s expense (for some reason, we can't specify that with this eCommerce system). The machine is being sold "as is".
