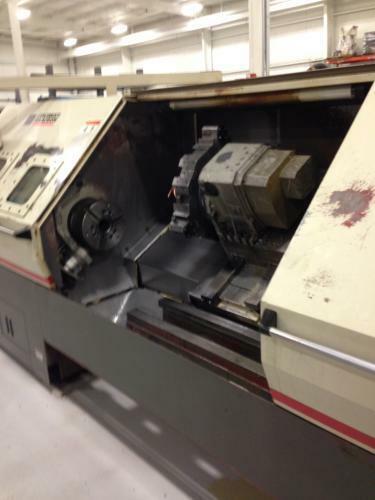

Falcon 300 CNC Lathe For Sale

Falcon 300 CNC Lathe For Sale

Regular price $15,000.00 USD
Regular price $0.00 USD Sale price $15,000.00 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

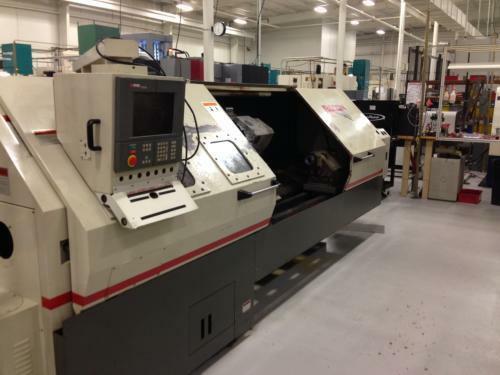

Falcon 300 CNC Lathe

Specifications:

Chuck Size

12" Hydraulic Chuck

Maximum Swing

25.59"

Maximum Cutting Diameter

18.8"

Maximum Turning Length

40"

X-Axis Travel

10.4"

Z-Axis Travel

40.15"

Spindle Nose / Spindle Bore

A2-8" / 3.7"

Maximum Bar Capacity

3.25"

Spindle Speed

3,000 RPM

Spindle Motor 30 min / Contin.

40 HP / 30 HP

Number of Turret Positions

12 Position Turret

Rapid Traverse Rates

600 IPM

Cutting Feedrate

1 to 200 IPM

Machine Dimensions LxWxH

163"x83"x78"

Machine Weight

14,600 lbs approx.


Equiped with

  • 12" Hydraulic Chuck
  • Chip Conveyor
  • Tool Presetter
  • Filtermist System
  • Tailstock with Hydraulic Quill Adjustment
  • Upgraded Flat Screen
  • Hand Held Pendant Control
  • Fanuc 0 Program Translation
  • RS 232 Port for DNC Interface
  • 3.5" Floppy Disk Drive
  • Ethernet Capability
  • 14" Color Monitor
  • PC Based Control w/ Touch Screen
  • Probe Interface
  • Probe Cycles for Tool Presetter
  • Transformer
  • All Available Tooling & Manuals

This machine is used and is being sold as is with no warranty. Some machines may qualify for a 3rd party warranty, please ask. As this is a used machine, we do not offer any refunds or returns.

Please call or email us for more information.

Phone: 616-200-4308 or Email: affordablemachinery@gmail.com

PLEASE NOTE: The shipping & loading cost is at the buyer’s expense (for some reason, we can't specify that with this eCommerce system). The machine is being sold "as is".
