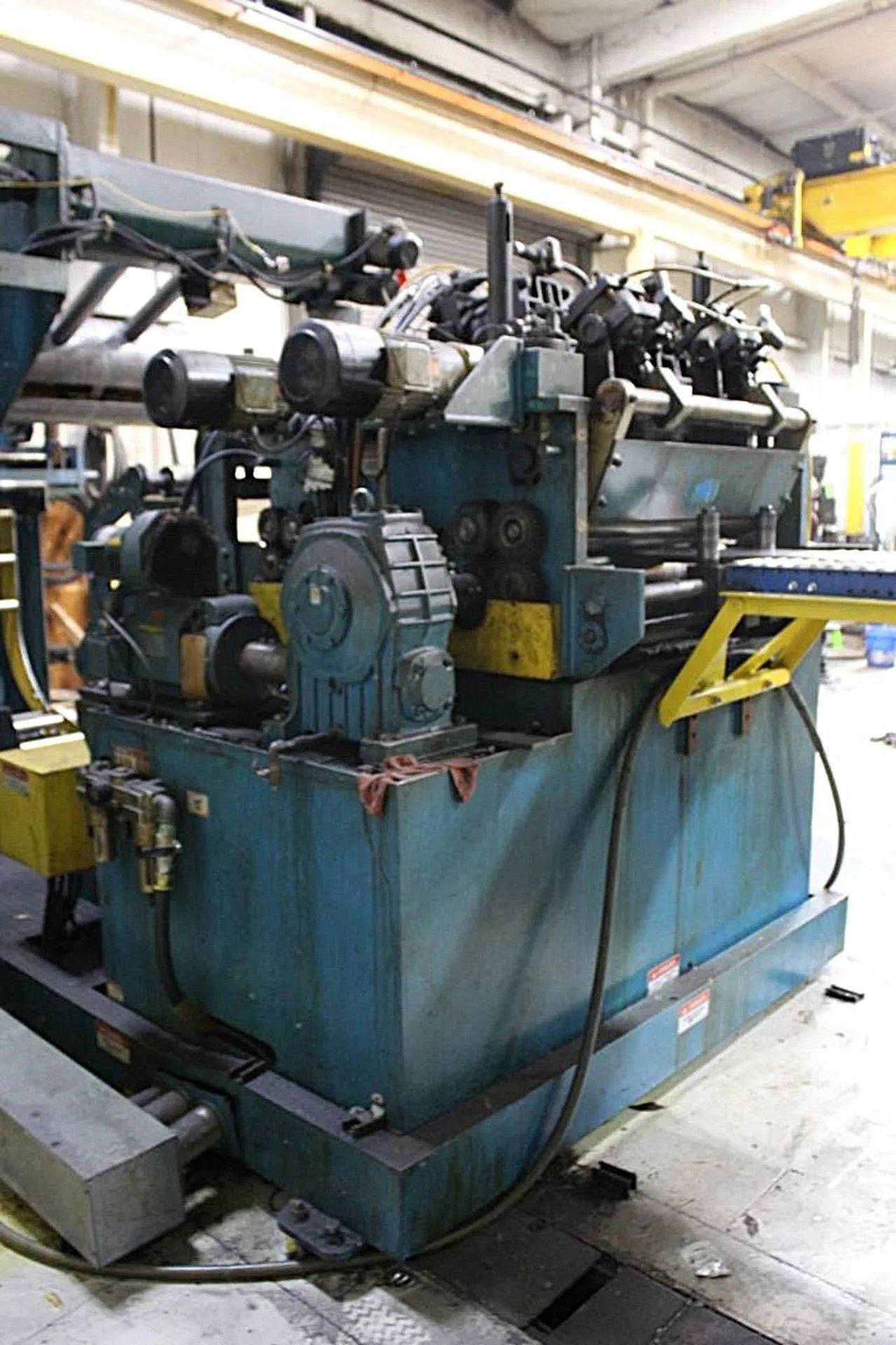

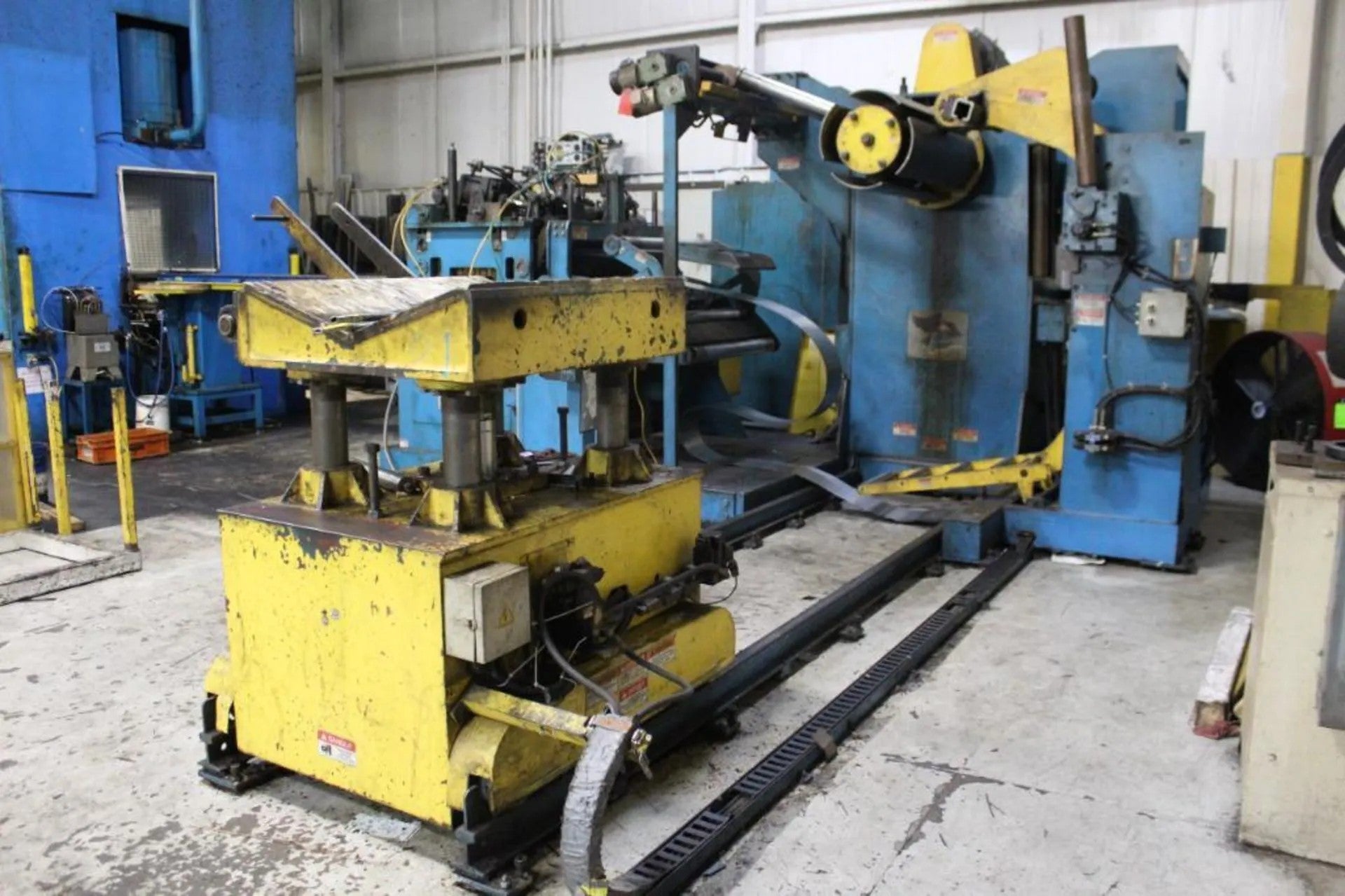

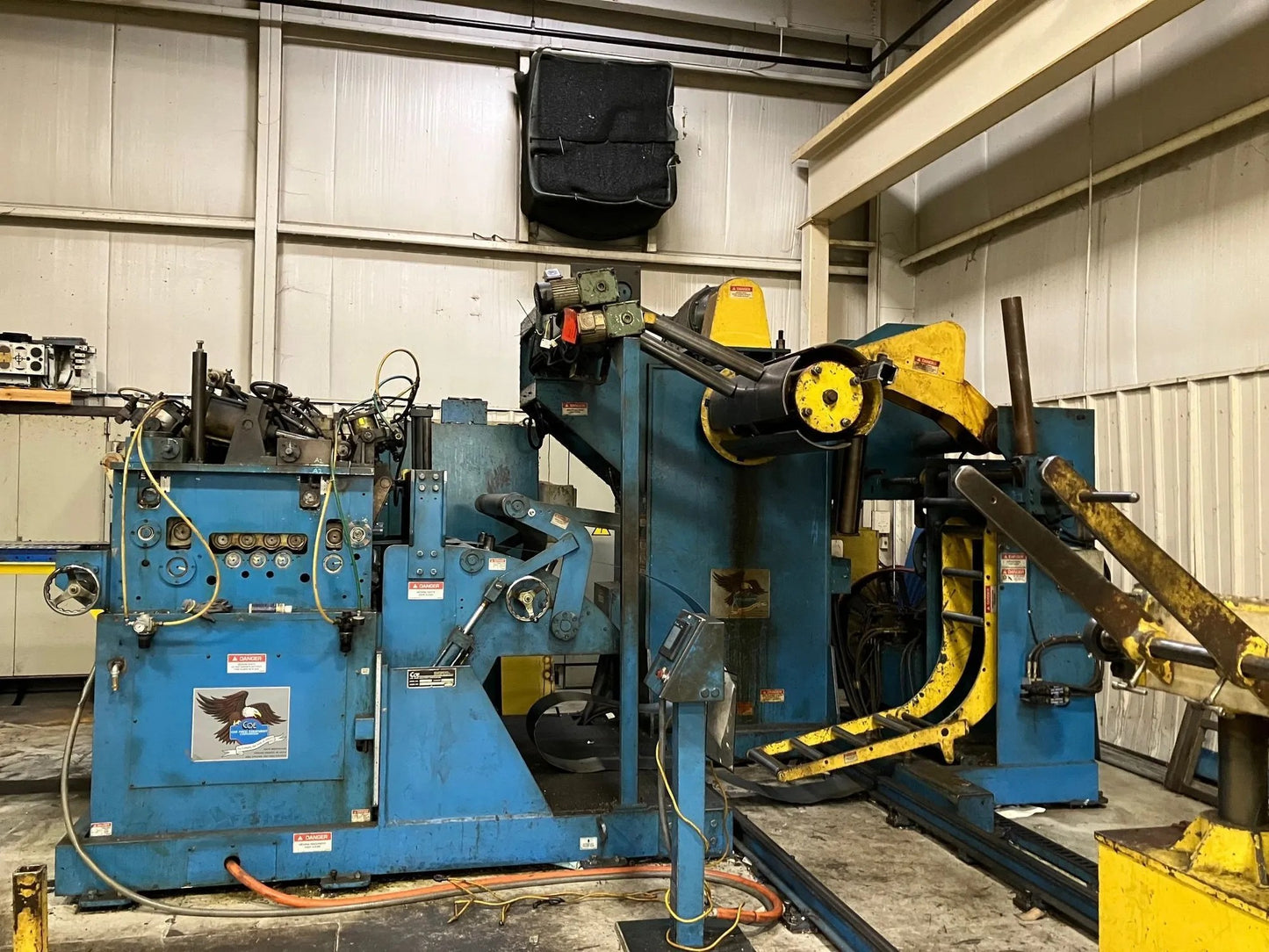

20,000 lb Coe Feedline For Sale

20,000 lb Coe Feedline

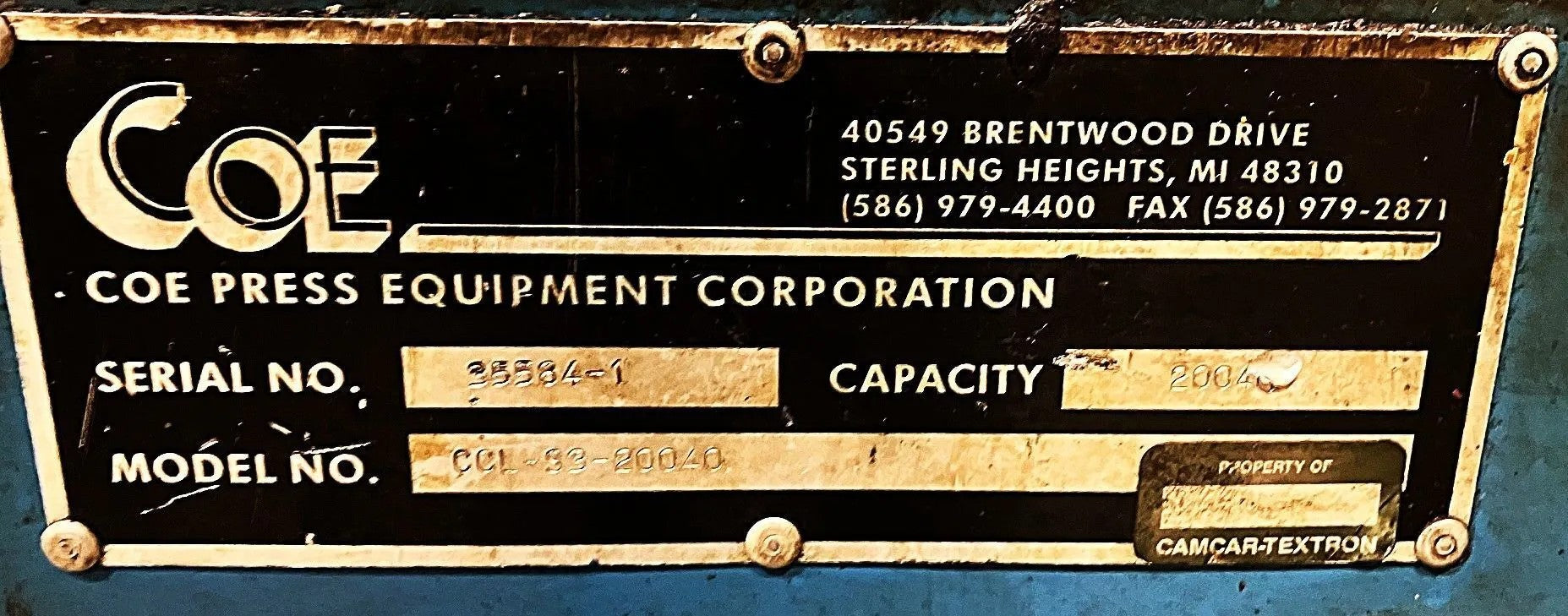

• Model: NCHF-40
• Serial: 35584-1
• Year of Manufacture: 2004

Specifications:

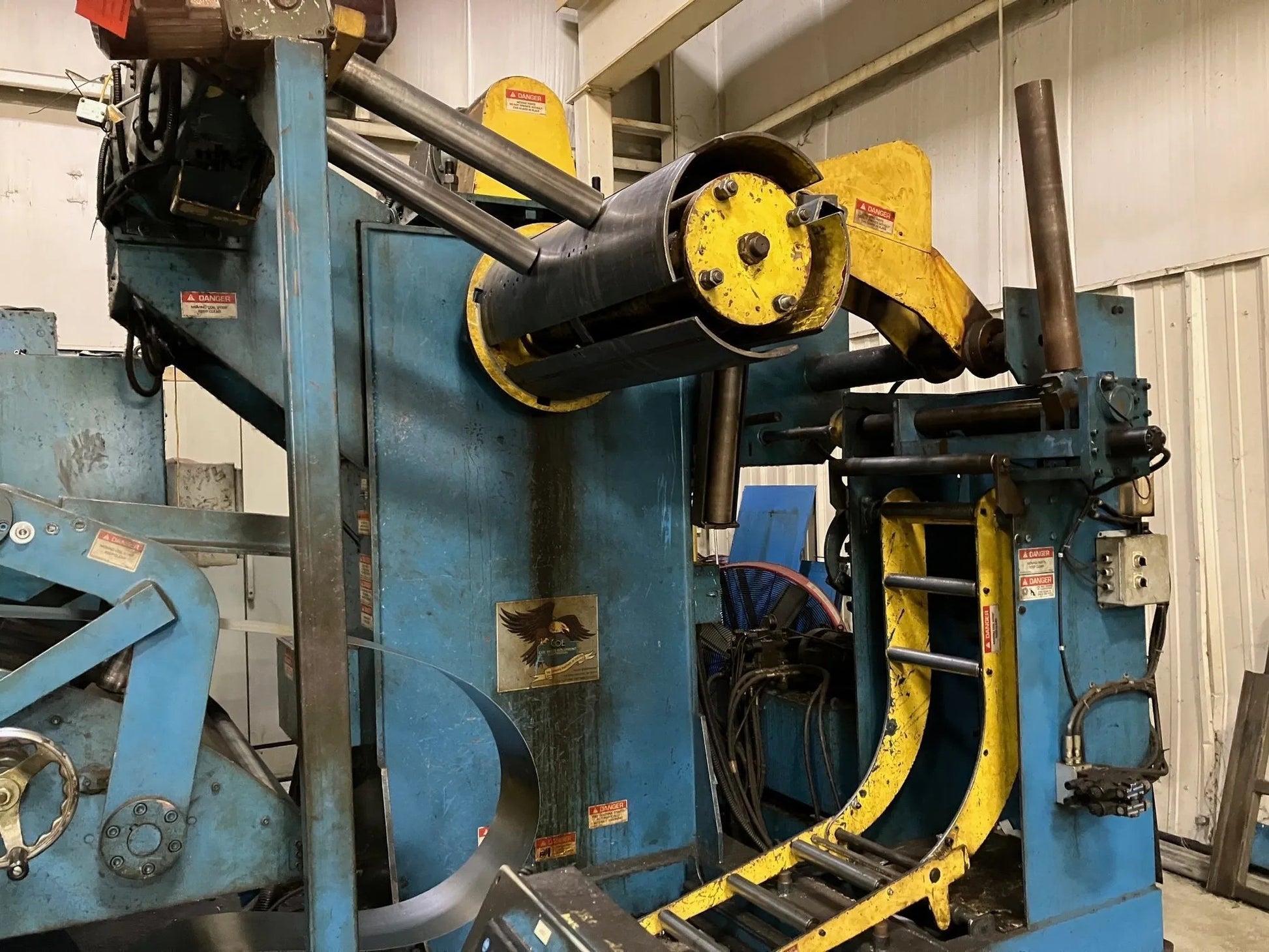

• Coil Weight Capacity: 20,000 lbs
• Coil I.D.: 20"-24"
• Coil O.D.: 72" Max
• Expansion Type: Wedge Type Hydraulic Cylinder

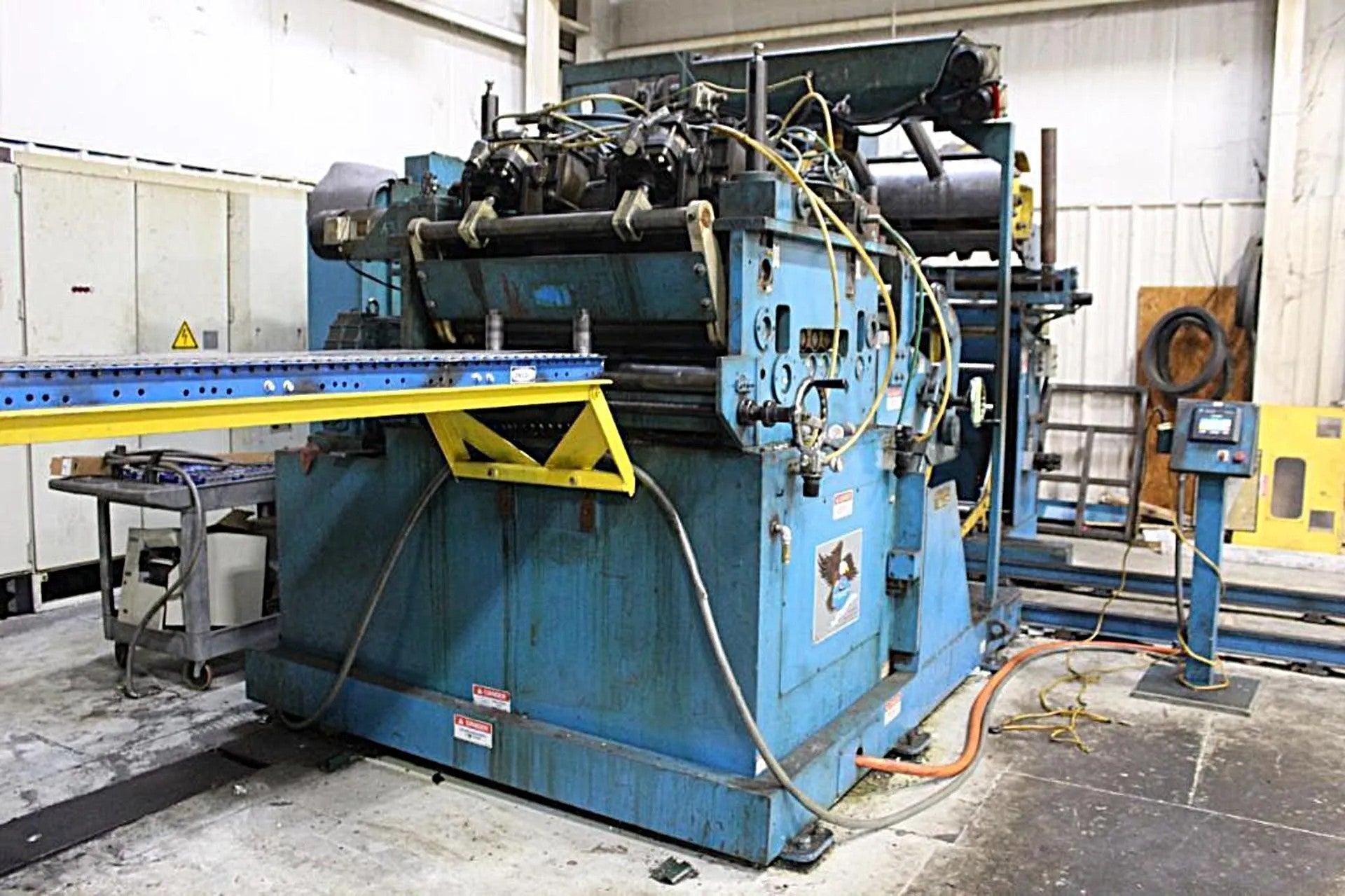

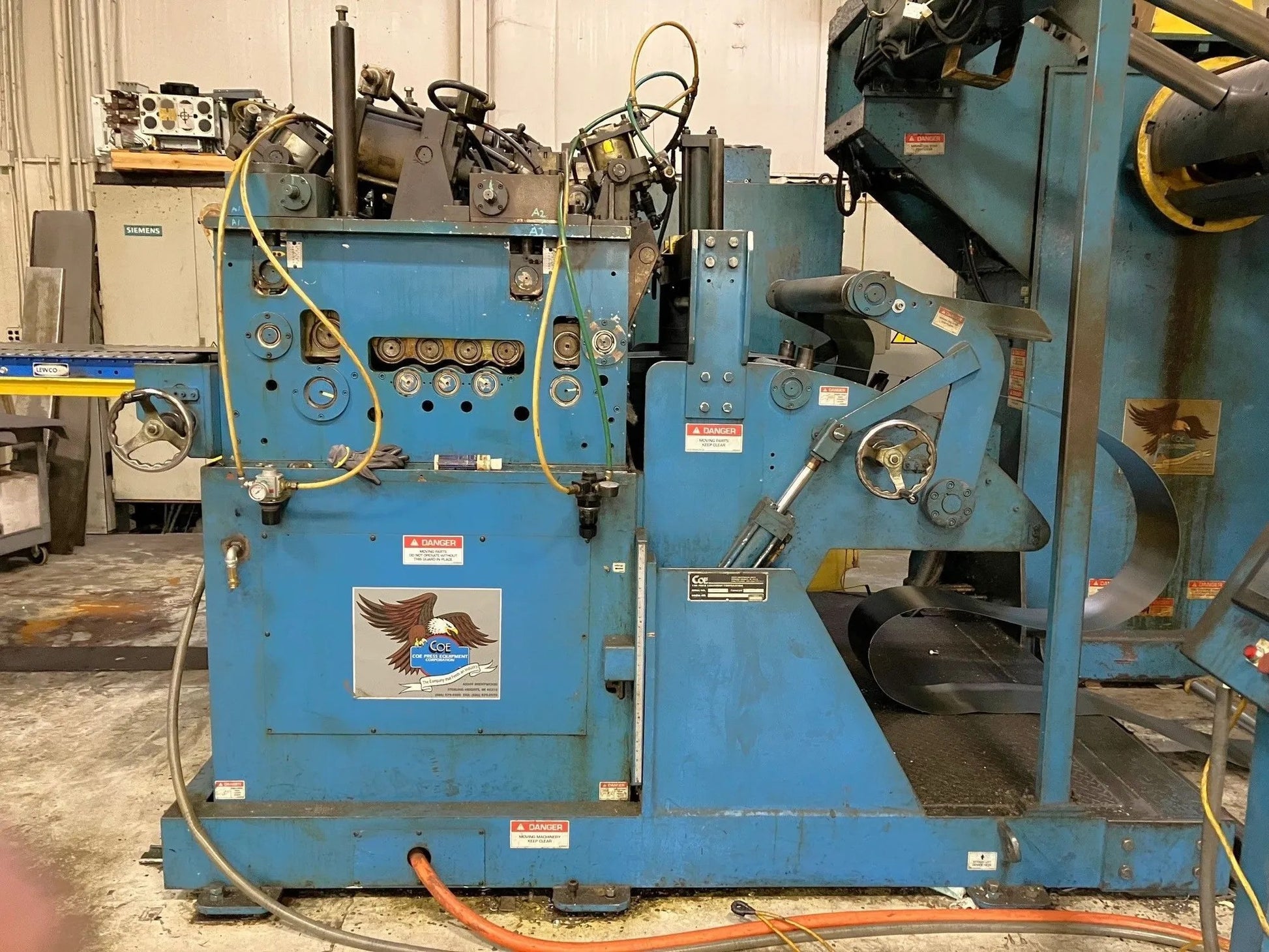

Straightening Capacity:

• Pinch Rollers: 2 Rolls - 4.42" Dia.
• Feeder Rollers: 2 Rolls - 5.66" Dia.
• Straightener Rollers: 7 Rolls - 3.36" Dia. - 4 Over 3

Material Specifications:

• High-Strength Low-Alloy Steel (HSLA)
• HSLA 50K Yield (Max): .250" Thick @ 18" Wide
• HSLA 50K Yield (Min): .020" Thick @ 36" Wide
• HSLA 50K Yield (Min): .187" Thick @ 36" Wide

Performance Specifications:

• Feed Velocity: 200 FPM
• Feed Acceleration: 20 Feet/Second/Second
• Feed Accuracy: +/- .005"
